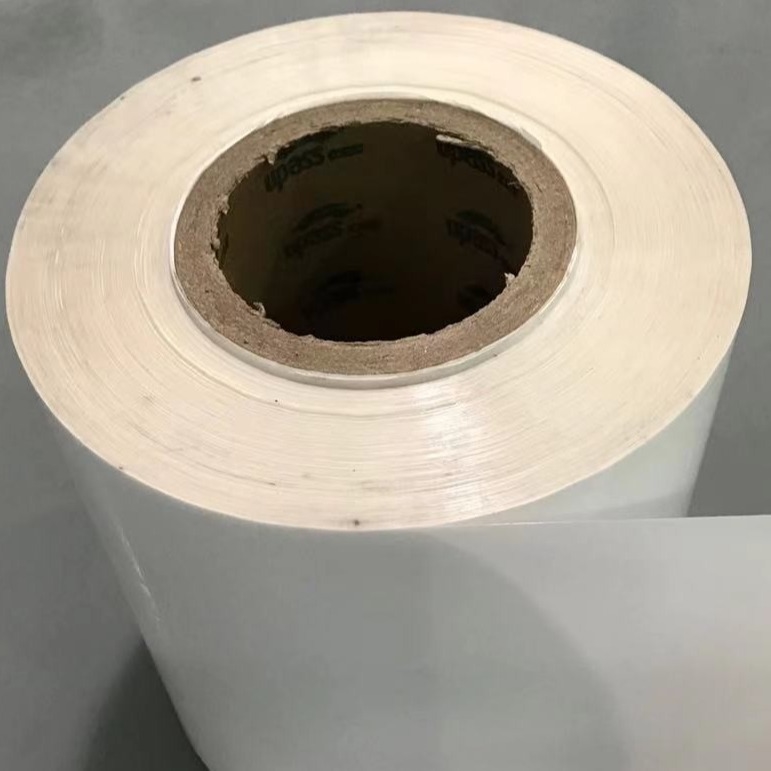

Laminated Waterproofing Membranes Anti Corrosion Film

Laminated Waterproofing Membranes Anti Corrosion Film
Laminated Waterproofing Membranes Anti Corrosion Film Laminated Waterproofing Membranes Anti Corrosion Film Laminated Waterproofing Membranes Anti Corrosion Film Laminated Waterproofing Membranes Anti Corrosion Film

Large Image :  Laminated Waterproofing Membranes Anti Corrosion Film

Product Details:
Place of Origin: China
Brand Name: Upass
Certification: CE, ROHS
Model Number: Laminated Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bubble Wrap & Wooden Pallet
Delivery Time: 15days
Payment Terms: T/T,L/C
Supply Ability: 200,000㎡~300,000㎡

Laminated Waterproofing Membranes Anti Corrosion Film

Description
Product Name: Waterproofing Membranes Application Anti Corrosion Film Material: Fluorine Film+ PET Film
Production Process: Laminated Performance: Weather Resistance
Thickness: 0.07-0.15mm Width: 100-1050mm
Color: White Application: Tapes, Waterproofing Membranes
Printing: Can Be Customizable Sample: Available
Highlight:

Waterproofing Membranes Anti Corrosion Film

,

Laminated Tapes Anti Corrosion Film

,

Fluorine Anti Corrosion Film

            Waterproofing Membranes Application Anti Corrosion Film



Description:



What's Anti Corrosion Film?



It is a laminated film which compound PET with Flourine Film.

The PET Film is inner side, can be high temperature resistance, which production temperature

resistance up to 180 degrees, also, it make the laminated film reinforcement, tear resistance

and high enlongation.

The Flourine Film is outer side, it is a weather resistance film, UV resistance, can be external

exposure for 25 years. It is white color, can be reflect 85% sunlight.

It is ideal material for self-adhesive waterproofing membranes and butyl tapes.



Parameter:



Detection Item Detection Method Detection Value Remark
Thickness UF509 GB/T6672-2001 0.128mm /
Width GB/T6673-2001 / According to customer needs
Max force UF509 GB/T 328.9-2007 MD:324N Rectangular spline, spline width 25mm, stretching rate: 100mm / min, fixture gauge distance: 100mm
TD:348N
Elongation at Break UF509   MD:406%
TD:260%
Tensile Strength UF509 GB/T 529-2008 MD:47N Stretching speed:250mm/min
TD:43N
Surface Tension GB/T14216 ≧42dyn/cm Dyne Pen Test
Dimensional change rate UF509 GB/T 35467-2017 MD:0.96% 90℃&24h
TD:0.77%
Water vapor transmission rate GB/T 21529 ≦70 g/m2.24h (20um) 38℃+100%RH
Electrolytic sensor method
Flammability grade UL94 VTM-0 White weathering film
Aging test PCT96 / Yellowing index △b≤2.0, Temperature 121 ℃, humidity 100%, air pressure 2atm, time 48h
  UV300KWh IEC61215   The temperature of the sample is 60 ± 5 ℃, and the total exposure is 120KWh • m2, of which UVB accounts for 3% -10%.
  DH2000h IEC61215   Temperature 85 ℃, humidity 85% R.H., 2000h
  TC400 IEC61215   Temperature -40 ℃ ~ 85 ℃, 6h / cycle, 400cycle

Laminated Waterproofing Membranes Anti Corrosion Film 0




Advantages:



1. Excellent properties of anti-aging, weather resistance
2. UV resistance
3. Weather resistance
4. Chemical corrosion resistance
5. Resistance to high temperature,heat,humidity and extreme cold
6. Reflectivity of over 85%
7. High strength, tear resistance



Application:



Weather Resistance Tape Application:



Laminated Waterproofing Membranes Anti Corrosion Film 1



Weather Resistance Waterproof Membranes Application:



Laminated Waterproofing Membranes Anti Corrosion Film 2
